Detailed Site Specific Information:
  • Site Information
    • Name
    • Project Address & GPS Coordinates
  • System Size
  • Proposed Equipment Used with Datasheets
  • Design
  • Preliminary Design
  • Schematics

The design needed to have the following:

PV Tilt Angle

The proposed mounting arrangement of the modules i.e. flush or tilt mounted is indicated on the drawings.

PV Module Layout

The design drawings include a module layout. Please note that this is a guide only and that the contractor will be responsible for the final design of the PV system including the module layout and ensuring that it complies with this specification.

DC Optimizers

Open to the idea of including DC optimizers in areas where excessive shading may adversely affect the output of the PV system.

A preliminary design shall be submitted as part of the response and shall include the following details for each site.
  • Proposed PV modules and Inverter Manufacturer and Model including manufacturer data sheets - only if there is any changes to the specifications
  • Proposed total system PV capacity
  • Proposed PV capacity installed on each building

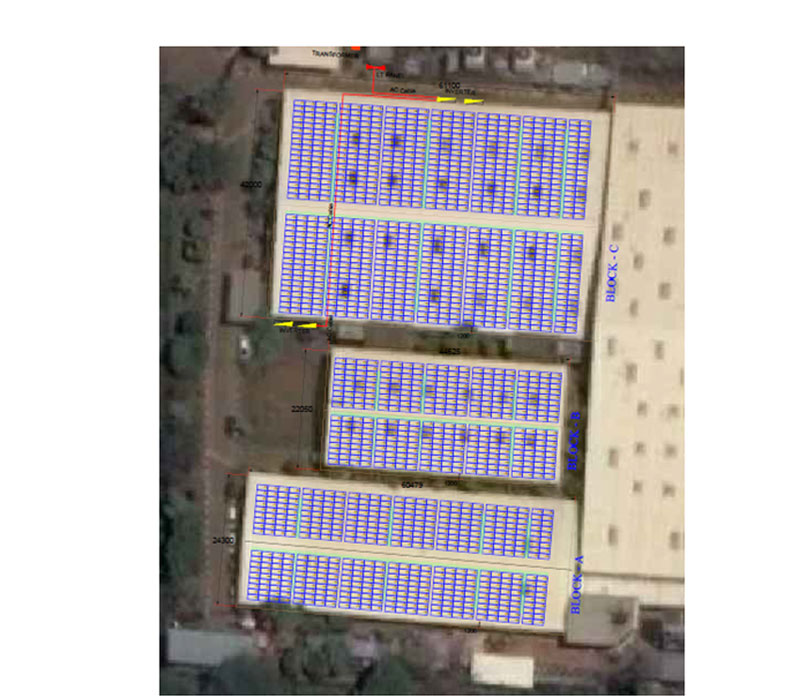

  • Proposed preliminary module Layout drawing showing which areas of the roof will be utilized
  • Proposed inverter locations
  • Expected annual energy output of proposed PV system and estimated CO2 and cost savings
  • Expected energy exported to grid
  • Shading considerations
  • Proposed type of mounting system and racking system including tilt angles
  • Proposed switchboard connection points

In summary, we need the following:
  • Design Module Layout
  • Design Report
  • Shading Analysis

  • Site Schematics
  • Site Overview

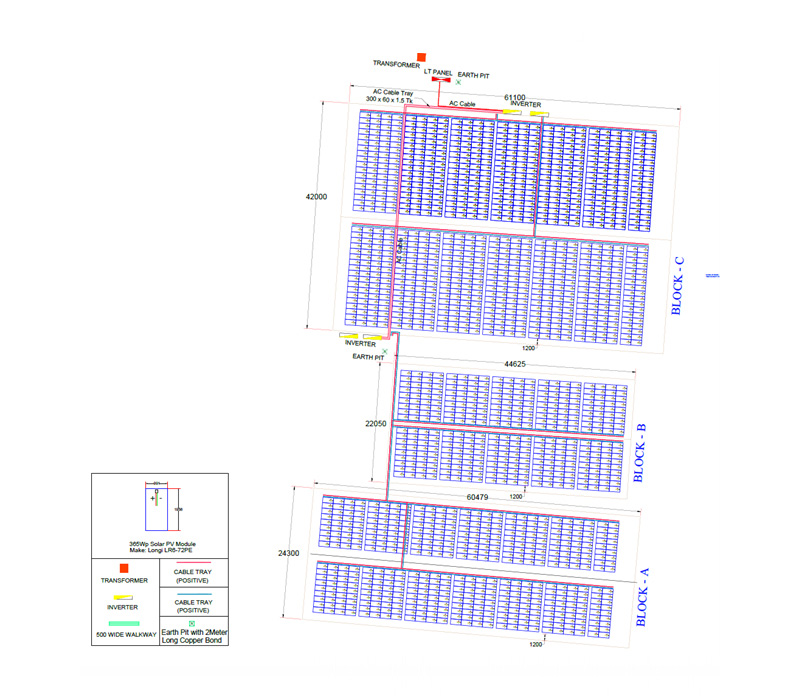

  • Roof Layout & String Layout Configuration
  • DC Schematics

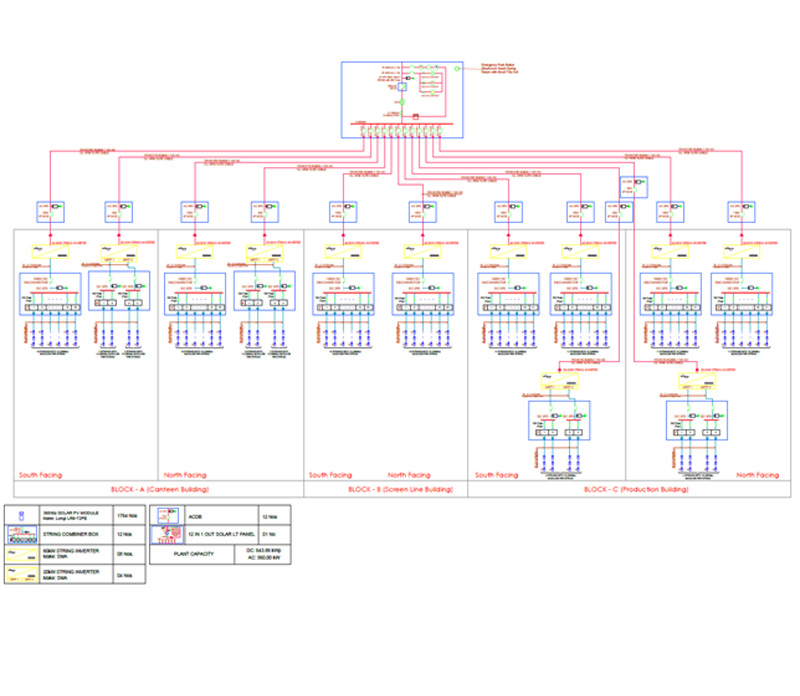

  • Overview Schematics
  • Configuration Schematics
  • AC Schematics
  • AC Electrical Schematics
  • AC Protection Schematics
